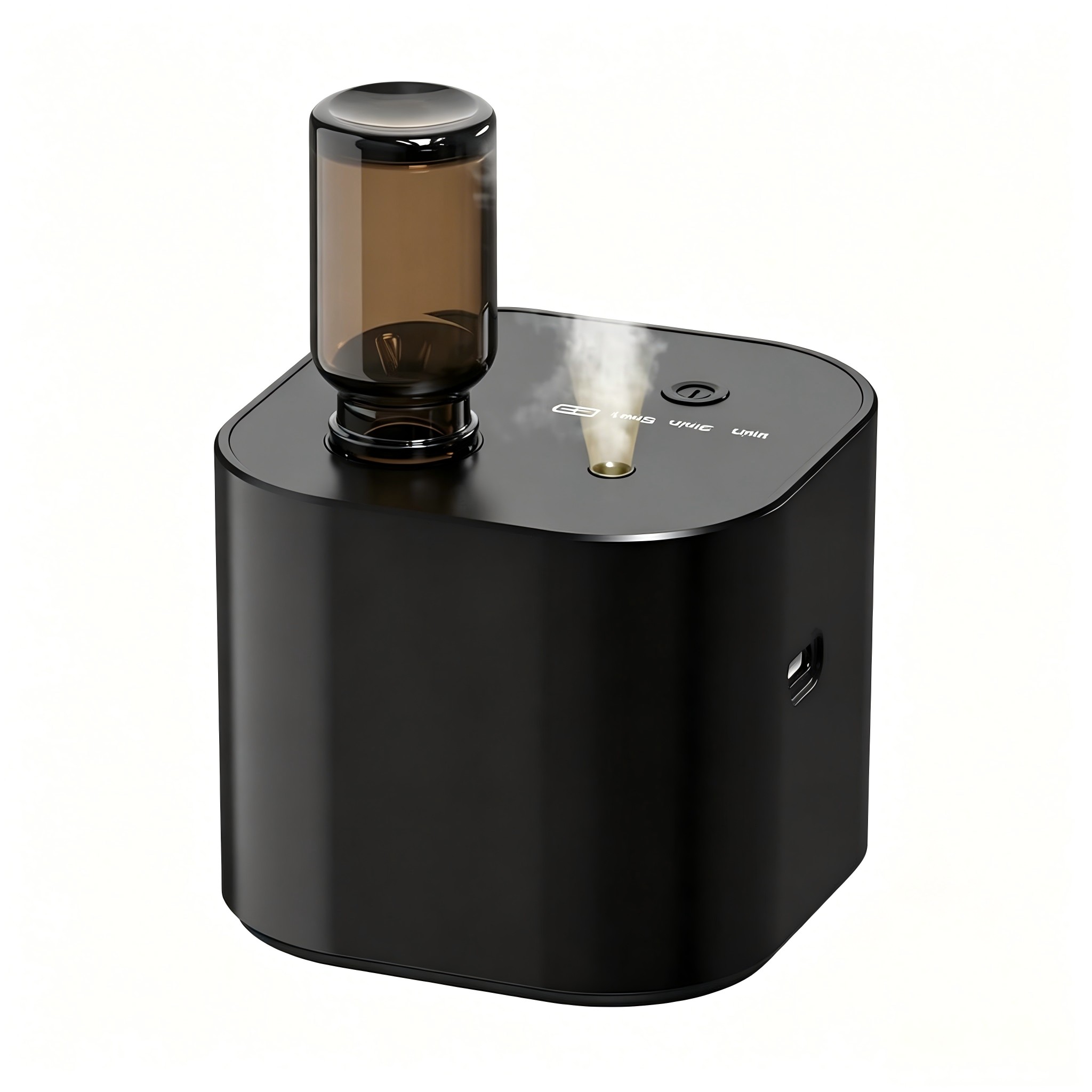

WP-A200 Portable Square Waterless Essential Oil Diffuser
- ●Battery: 2000mAh
- ●Working Time: 2-8 days
- ●Charging Time: 2-3H (Type-C)
- ●Volume: 10ml
- ●Power: 1.3W
- ●Noise: ≤36dB
- ●Material: ABS+PP
- ●Control: Touch
Description of WP-A200 Portable Square Waterless Essential Oil Diffuser

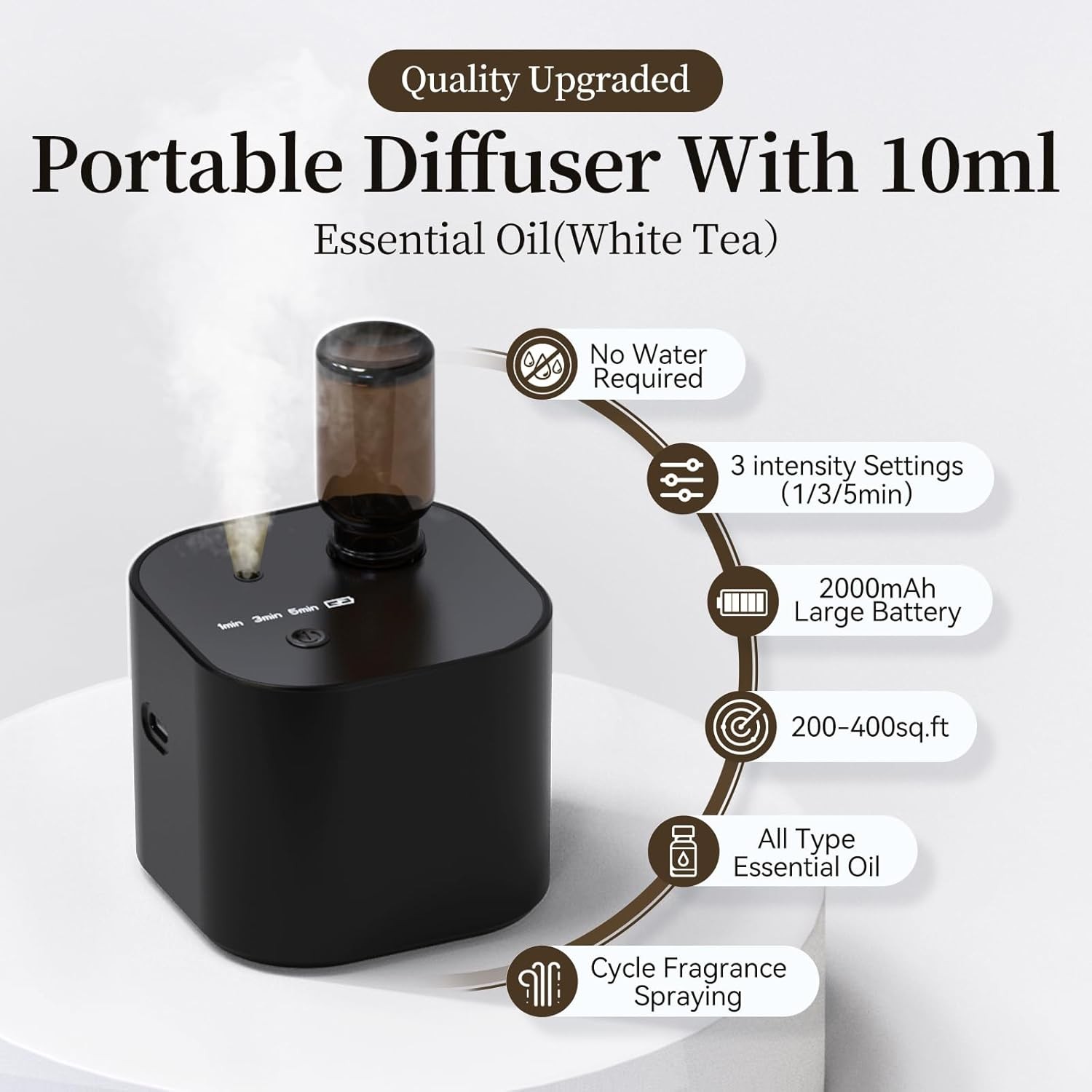

The WP-A200 is a portable, square waterless essential oil diffuser. ' 'Instead of mixing oil with water it nebulizes pure essential oil into a fine mist, so there is no ' 'tank to fill and no scale to scrub, and the 10ml bottle screws straight into the atomization port ' 'through a standard DIN18mm thread with the dropper plug left in place. The ABS+PP body carries the ' 'touch panel on its top face, the whole unit draws just 1.3W and noise stays at 36dB or below.
One power button runs everything: a 3-second long press switches the diffuser on and a 1-second ' 'tap steps through the three intensity settings - High (60 seconds of spray, 60 seconds of pause), ' 'Medium (40/180) and Low (20/300) - which the panel marks 1MIN, 3MIN and 5MIN. The built-in 2000mAh ' 'battery charges over Type-C in 2-3 hours and then runs 2-8 days of normal intermittent use, so one ' '10ml bottle of oil keeps a room scented for days without a cable. Wholesale and OEM/ODM service is ' 'available on this model.
Key Features of WP-A200
Pure essential oil is atomised straight into a fine mist with no water and no heat, so nothing is diluted, there is no tank to refill and no scale to clean off. One 10ml bottle sits in the atomization port and the whole unit draws 1.3W.
High sprays for 60 seconds and pauses for 60 seconds, Medium sprays 40 seconds and pauses 180 seconds, and Low sprays 20 seconds and pauses 300 seconds - marked 1MIN, 3MIN and 5MIN on the top panel, where the speed indicator light shows which setting is active.

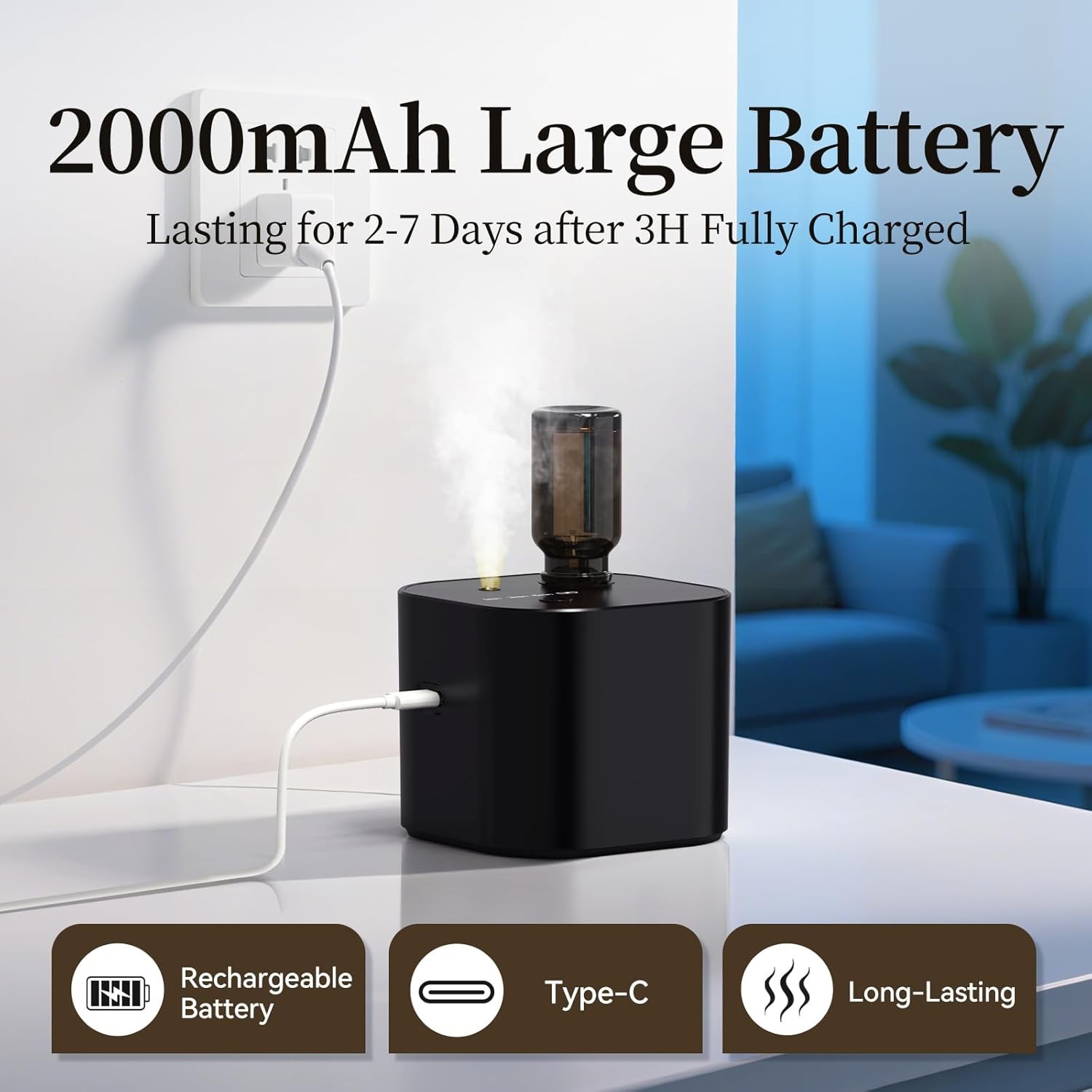

The built-in 2000mAh battery runs for 2-8 days of normal intermittent use and refills in 2-3 hours through the Type-C port, so the diffuser works wirelessly on a desk, in a car or on a shelf with no cable in sight.

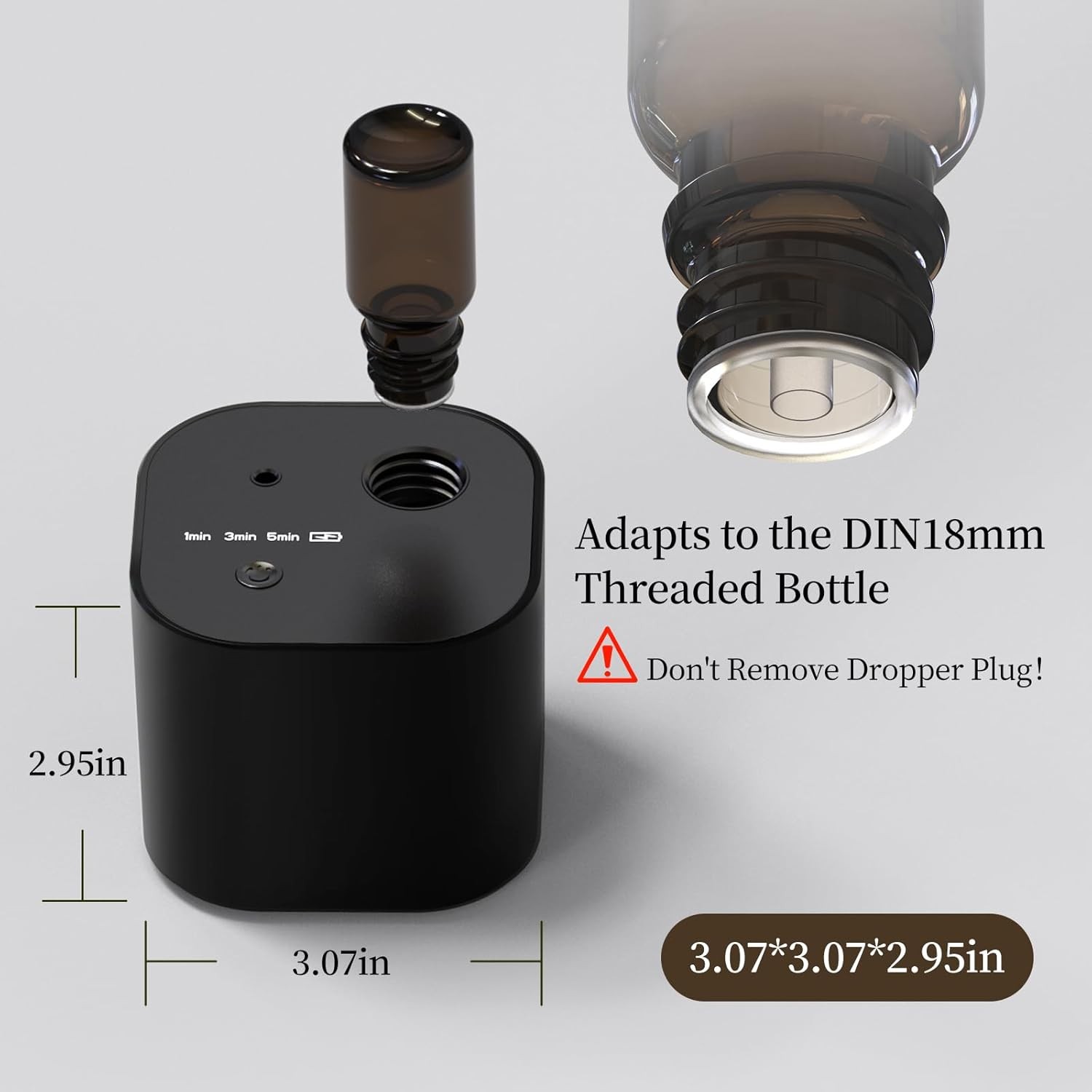

The atomization port adapts to a standard DIN18mm threaded essential oil bottle: screw the 10ml bottle straight in and leave the dropper plug in place - no syringe, no pipette and no oil transfer needed.
Noise stays at 36dB or below, so the unit disappears into a bedroom or an office. Everything is set from the touch panel on the top face - power button, speed indicator light and atomization port - in a square ABS+PP body.
WP-A200 Technical Data
| Performance | Detail |
|---|---|
| Item Type | Waterless Essential Oil Diffuser |
| Battery | 2000mAh |
| Working Time | 2-8 days |
| Charging Time | 2-3H |
| Power | 1.3W |
| Material | ABS+PP |
| Control | Touch |
| Noise | ≤36dB |
| Volume | 10ml |
| Timer Mode | Continuous / Intermittent Spraying |
| Color | Silver / Dark Green / Black / Gold / White |
| Package | Waterless Essential Oil Diffuser (No Essential Oils) ×1 / Type-C Cable ×1 / Manual ×1 |
Applications of WP-A200
Bedrooms
Runs from the battery at 36dB or below, and the Low setting sprays for 20 seconds every 5 minutes, so a single 10ml bottle keeps the room scented for days without a cable.
Offices & Desks
A 1.3W draw and a compact square body that fits any corner; the Medium setting holds a steady background scent through a working day.
Cars
Battery powered with no water to spill and a body small enough for a cup holder, while cycle spraying keeps the cabin fresh on a commute.
Yoga & Meditation
Tap the power button up to High to build the fragrance quickly before a session, then step down to Low so it lasts all the way through.
Hotels, Reception & Retail Counters

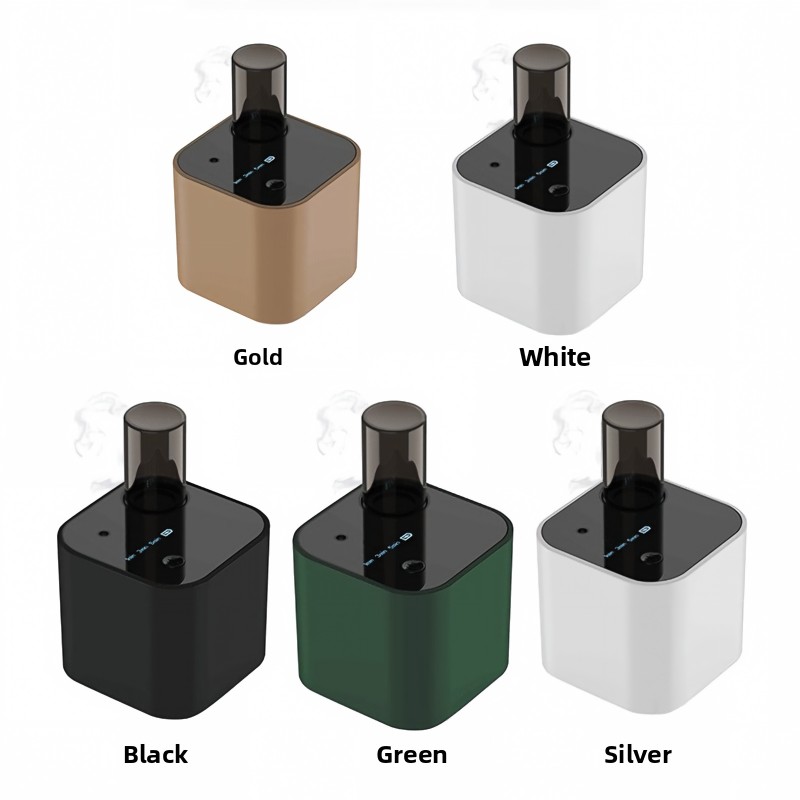

Cordless operation means no socket is needed, and the five colourways - silver, dark green, black, gold and white - can be matched to the room.

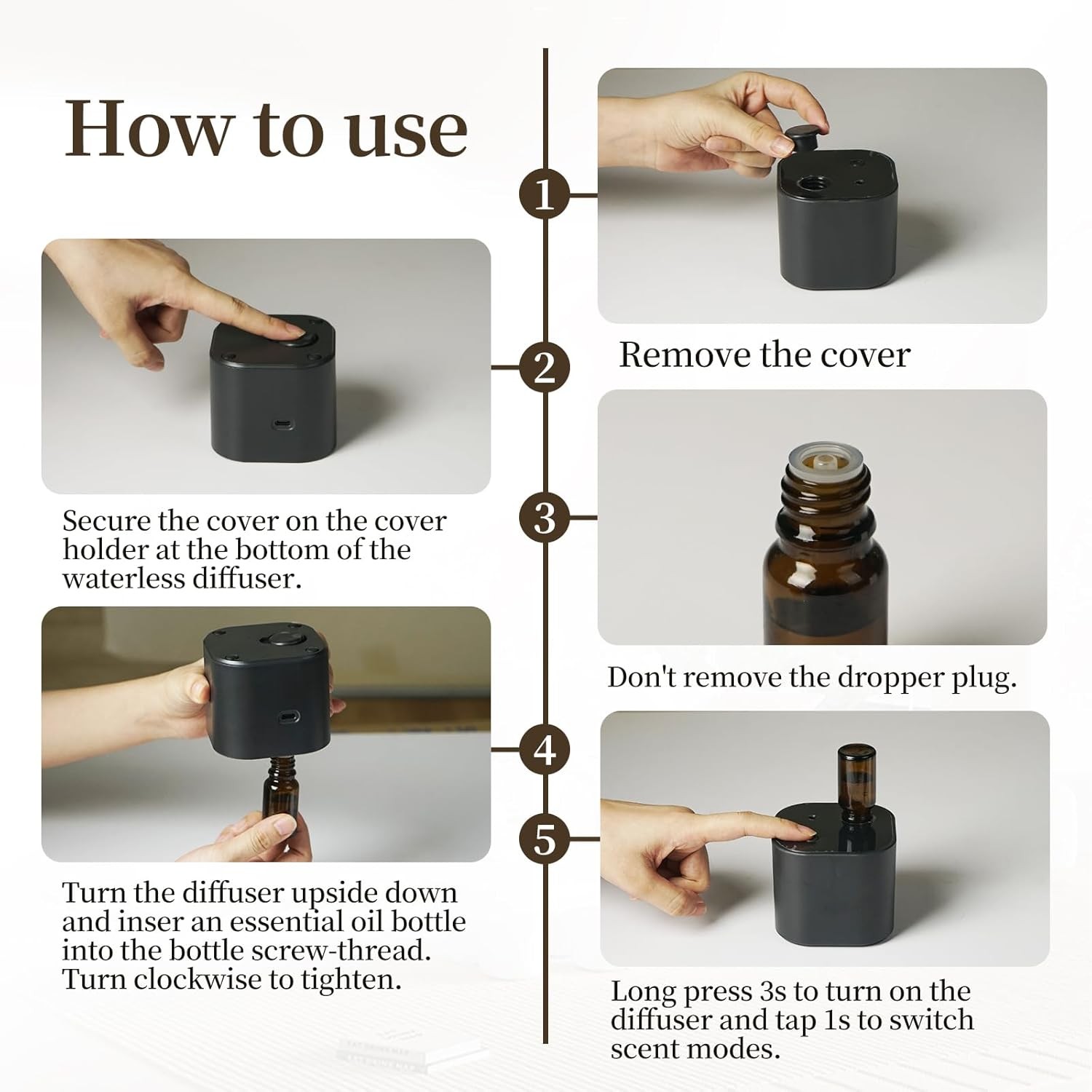

How to Use & Care
Instructions
- 1
Remove the cover from the diffuser.
- 2
Secure the cover on the cover holder at the bottom of the waterless diffuser.
- 3
Do not remove the dropper plug from the essential oil bottle.
- 4
Turn the diffuser upside down and insert an essential oil bottle into the bottle screw-thread; turn clockwise to tighten.
- 5
Long press the power button for 3 seconds to turn the diffuser on, then tap it for 1 second to switch between the three scent modes.
- 6
Charge the 2000mAh battery through the Type-C port - a full charge takes 2-3 hours and runs for 2-8 days of normal intermittent use.
Tips
- Use a high-quality, low-viscosity pure essential oil - synthetic fragrance oils with inferior solvents may not nebulize properly.
- This is a waterless unit: never add water or any other liquid to the device.
- Keep the dropper plug in the bottle, and screw the bottle in firmly by hand - the atomization port adapts to DIN18mm threaded bottles.
- Ensure proper ventilation during use, and keep the diffuser out of the reach of children and pets.
- Charge only through the Type-C port with the supplied cable; a full charge takes 2-3 hours.

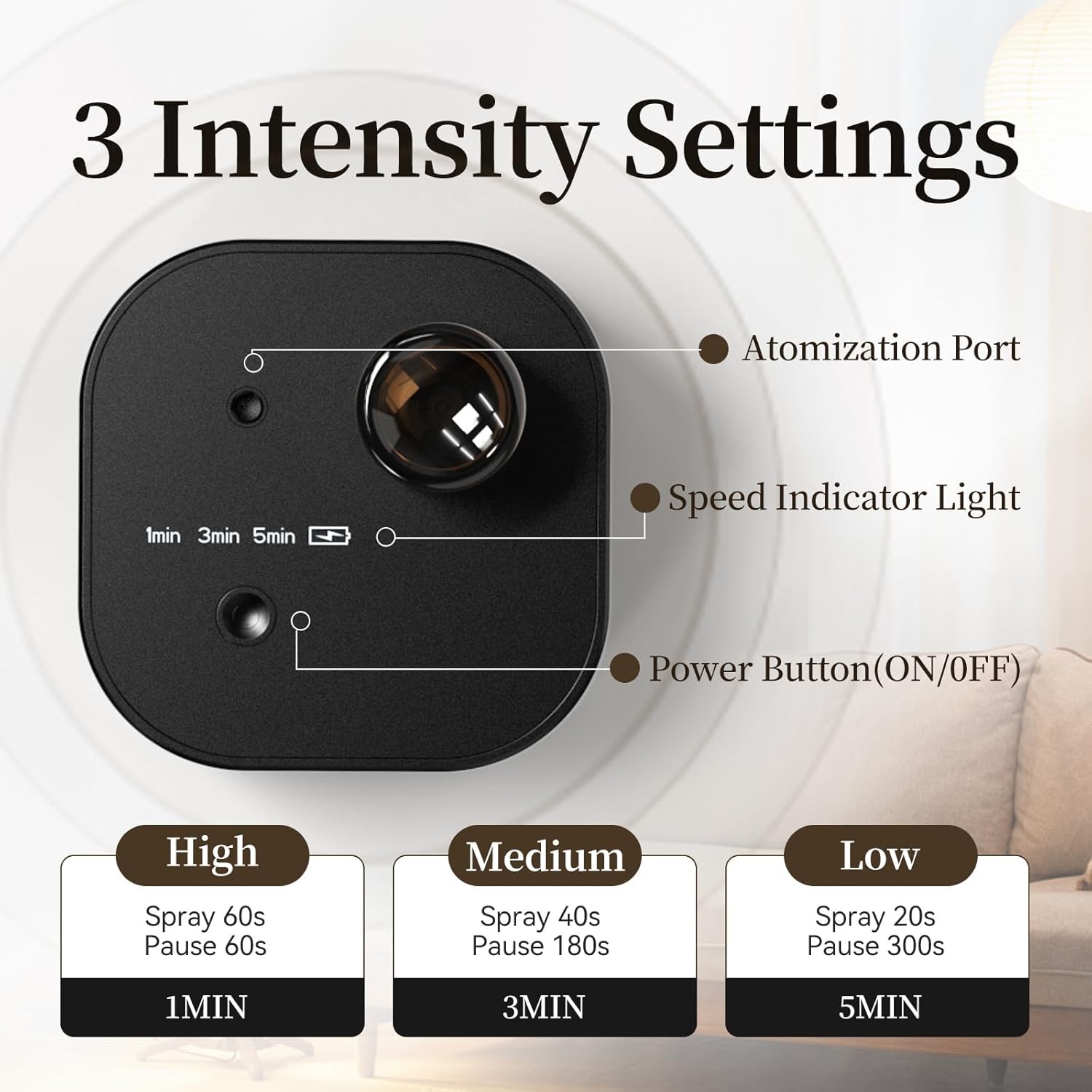

Intensity Settings
| Setting | Spray | Pause |
|---|---|---|
| High | 60 seconds | 60 seconds |
| Medium | 40 seconds | 180 seconds |
| Low | 20 seconds | 300 seconds |
The three settings are marked 1MIN, 3MIN and 5MIN on the top panel, and the speed indicator light shows which one is active.
OEM&ODM Service
ODM Service
- Choose from proven hot-selling WINPRO designs
- Add your logo and branding (package, sticker, logo)
- Select from existing colours and plug types
- Custom packaging artwork (colour box / carton)
- No mould or tooling costs
- 24-hour after-sales response
OEM Service
- Custom product structure development
- New mould development for custom design
- PCB and function customization
- Material and component customization
- Technical specification planning
- You own the design IP
OEM vs ODM: Which is Right for You?
| Feature | ODM (Quick Branding) | OEM (Custom Development) |
|---|---|---|
| Design Ownership | Factory owns design (existing WINPRO models) | Client owns design |
| Minimum Order Quantity | 3000 pcs | 1000 pcs |
| Lead Time | 30-45 days | 15-35 days |
| Development Cost | Usually no tooling cost | Tooling / mould cost subject to design |
| Sample Time | On request | On request |
| Customization Scope | Logo, sticker, colour box, carton, plug type | Structure, mould, material, PCB, functions |
| Best For | Startups, testing the market, quick launch | Established brands, long-term strategy |
ODM Process: Launch Your Brand in 7 Steps
Factory & Certification
WINPRO Company Building & Factory
WINPRO's factory covers an area of over 6,000 square meters, boasting multiple production lines and strong R&D capabilities. ISO9001 certified, with most products holding CE/FCC/RoHS certifications. Factory-direct pricing with one-stop OEM & ODM service.
- ●100+ Professional Certificates
- ●20+ Excellent Designers
- ●Strict Quality Inspection
- ●Factory with an area of 6000m²
- ●Serving over 1000 companies
Why Choose WINPRO
FAQ
Does this diffuser need water?
No. It is a waterless diffuser: cold nebulizing turns pure essential oil directly into a fine mist, so there is no water tank, nothing is diluted and no scale builds up inside the unit.
How long does the battery last?
The built-in 2000mAh battery gives 2-8 days of use per charge, depending on which of the three intensity settings you choose. Low - 20 seconds of spray every 5 minutes - gives the longest run, and a full charge takes 2-3 hours.
How do I charge it?
Through the Type-C port with the supplied Type-C cable. A full charge takes 2-3 hours.
What are the three intensity settings?
High sprays for 60 seconds and pauses for 60 seconds, Medium sprays 40 seconds and pauses 180 seconds, and Low sprays 20 seconds and pauses 300 seconds. The top panel marks them 1MIN, 3MIN and 5MIN, and the speed indicator light shows the active one.
How noisy is it?
Noise is rated at 36dB or below, so it stays in the background on a desk, a bedside table or in a car.
Which essential oil bottles fit?
The atomization port adapts to standard DIN18mm threaded bottles and the unit is supplied for a 10ml bottle. Screw the bottle straight in with the dropper plug still in place - the oil does not need to be transferred.
What is in the box, and is essential oil included?
The package contains the waterless essential oil diffuser, one Type-C cable and a manual. Essential oil is not included.
Can the colour, logo and packaging be customized?
Yes. The model comes in silver, dark green, black, gold and white, and OEM/ODM service covers logo printing, stickers, colour boxes and cartons. MOQ applies - send us an inquiry for details.
