WP-036 400ML Diamond Pattern Aroma Diffuser with Remote Control
- ●Capacity: 400ml
- ●Mist Output: 30-45ml/h
- ●Colorful Lights: 7 Colors, Fixed Color
- ●Timer Setting: 1H / 3H / 6H Intermittent
- ●Operation Mode: Button / Remote Control
- ●Power: 10W (24V)
- ●Applicable Area: 21-30㎡
- ●Material: PP+ABS
- ●Auto Shut-Off: Yes, without water
Description of WP-036 400ML Diamond Pattern Aroma Diffuser with Remote Control

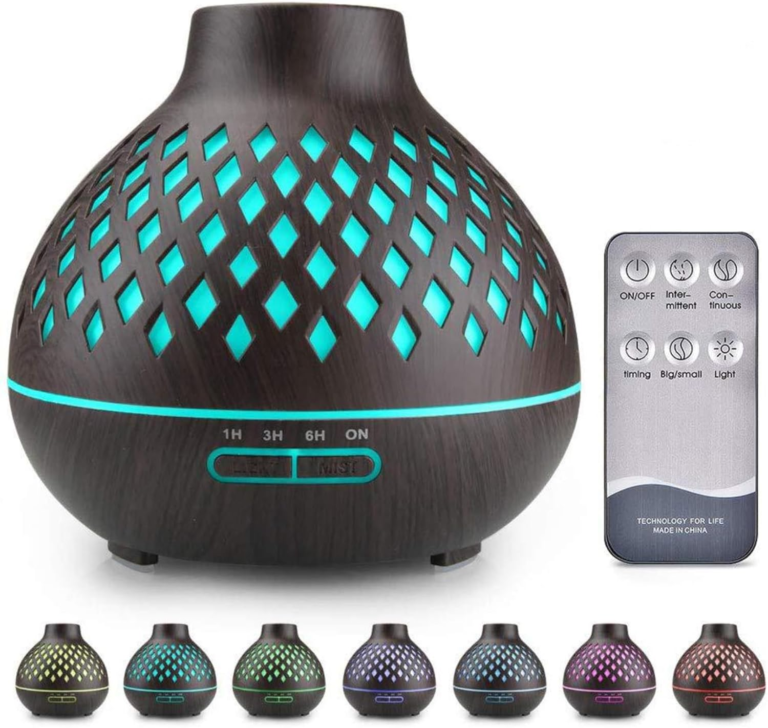

The WP-036 is a 400ml ultrasonic aroma diffuser with a diamond cut-out shell finished in dark wood grain by water transfer printing. It is operated from the LIGHT and MIST buttons on its base or with the remote control supplied in the box, and the built-in LED light offers seven colours with adjustable brightness - let it cycle through them automatically or hold one colour you like.
It releases 30-45ml of fine mist per hour and covers around 21-30 square metres. The base panel prints 1H 3H 6H ON, and the MIST button steps through those intermittent settings; it also powers down automatically when the tank runs dry. Noise stays below 36dB at an ultrasonic frequency of 2.4MHz, so it suits a bedroom or a baby room. Running at 10W on a 24V supply with a 1.5-meter cord, the package ships with a US, UK, AU or EU plug adapter and a remote control. Wholesale and OEM/ODM service is available on this model.
Key Features of WP-036
A 400ml reservoir releasing 30-45ml of fine mist per hour scents and humidifies roughly 21-30 square metres between refills.
The base carries LIGHT and MIST buttons, and the supplied remote control repeats every function - ON/OFF, intermittent, continuous, timing, big/small mist and light - from up to 5 feet away.
Seven colours are built in. Let the light cycle through them automatically, or hold one fixed colour, and dim the brightness to suit the room.
The base panel prints 1H 3H 6H ON, and the MIST button steps through the intermittent settings so the diffuser stops on its own.
The diamond cut-out pattern is applied to the PP+ABS shell by water transfer printing, so the grain stays sharp across the whole surface.
Noise stays below 36dB at an ultrasonic frequency of 2.4MHz, and the diffuser powers off automatically when the tank runs dry.
WP-036 Technical Data
| Performance | Detail |
|---|---|
| Material | PP+ABS |
| Shell Process | Water Transfer Printing |
| Capacity | 400ml |
| Colorful Lights | 7 Colors, Fixed Color |
| Operation Mode | Button / Remote Control |
| Noise | <36dB |
| Timer Setting | 1H / 3H / 6H Intermittent |
| Power | 10W |
| Voltage | 24V |
| Power Supply | DC, AC |
| Ultrasonic Frequency | 2.4MHz |
| Mist Output | 30-45ml/h |
| Applicable Area | 21-30㎡ |
| Wire Length | 1.5 meters |
| Function | Automatic power off without water |
| Package Includes | Aroma diffuser ×1 / Adapter (US, UK, AU, EU) ×1 / Remote control ×1 / User manual ×1 |
| OEM Service | Color box, carton box, sticker, logo can be customized |
| Warranty | One-year warranty |
Applications of WP-036
Bedrooms & Bedside Tables
Quiet enough for undisturbed sleep, with soft light and aromatherapy to unwind after a day.
Baby Rooms & Children’s Rooms
Gentle moisture protects young skin, and the low noise will not startle little ones.
Living Rooms
The diamond pattern shell doubles as decor while it keeps the room comfortable and masks cooking or pet odours.
Offices & Desks
Cuts the dry air from air conditioning, and mild aromatherapy eases work stress without distracting others.
Yoga Studios
Calming scents and the rotating colour light help set the pace of a session.
How to Use & Care
Instructions
- 1
Remove the insulating tab at the bottom of the remote control before first use.
- 2
Lift up the cover and fill the water tank up to the MAX line with room-temperature water.
- 3
Add a few drops of essential oil to the water (oil is not included).
- 4
Insert the power cable into the DC socket on the base and connect the 24V adapter.
- 5
Press the MIST button to start: once for 1 hour, twice for 3 hours, and a third time for 6 hours. The diffuser shuts off on its own once the water runs out.
- 6
Press the LIGHT button to change the LED colour, or use the remote control within 5 feet - ON/OFF, intermittent, continuous, timing, big/small mist and light.
Tips
- Use only 100% essential oil or water-based fragrance - acidic oils can affect the diffuser’s longevity and performance.
- Use room-temperature distilled or filtered water, and stop use and refill when the water runs out to avoid dry operation.
- Do not fill the tank beyond the MAX line.
- Clean the tank regularly - the rounded design reduces dirt buildup, making cleaning easy.
- Always place the device on a flat surface.
- Avoid diffusing strong oils around those with asthma, allergies or respiratory conditions without consulting a healthcare professional.
OEM&ODM Service
ODM Service
- Choose from proven hot-selling WINPRO designs
- Add your logo and branding (package, sticker, logo)
- Select from existing colours and plug types
- Custom packaging artwork (colour box / carton)
- No mould or tooling costs
- 24-hour after-sales response
OEM Service
- Custom product structure development
- New mould development for custom design
- PCB and function customization
- Material and component customization
- Technical specification planning
- You own the design IP
OEM vs ODM: Which is Right for You?
| Feature | ODM (Quick Branding) | OEM (Custom Development) |
|---|---|---|
| Design Ownership | Factory owns design (existing WINPRO models) | Client owns design |
| Minimum Order Quantity | 3000 pcs | 1000 pcs |
| Lead Time | 30-45 days | 15-35 days |
| Development Cost | Usually no tooling cost | Tooling / mould cost subject to design |
| Sample Time | On request | On request |
| Customization Scope | Logo, sticker, colour box, carton, plug type | Structure, mould, material, PCB, functions |
| Best For | Startups, testing the market, quick launch | Established brands, long-term strategy |
ODM Process: Launch Your Brand in 7 Steps
Factory & Certification
WINPRO Company Building & Factory
WINPRO's factory covers an area of over 6,000 square meters, boasting multiple production lines and strong R&D capabilities. ISO9001 certified, with most products holding CE/FCC/RoHS certifications. Factory-direct pricing with one-stop OEM & ODM service.
- ●100+ Professional Certificates
- ●20+ Excellent Designers
- ●Strict Quality Inspection
- ●Factory with an area of 6000m²
- ●Serving over 1000 companies
Why Choose WINPRO
FAQ
What is the water tank capacity of the WP-036?
The WP-036 has a 400ml water tank.
What is the mist output?
It releases 30-45ml of mist per hour.
How much area does it cover?
The recommended coverage is around 21-30 square metres.
What timer settings are available?
The base panel prints 1H 3H 6H ON, and the MIST button steps through the 1H, 3H and 6H intermittent settings.
How is the diffuser operated?
From the LIGHT and MIST buttons on the base, or with the remote control supplied in the box. Remove the insulating tab from the remote before first use.
What light options does it have?
Seven colours with adjustable brightness. Set the light to cycle through the colours automatically, or hold one fixed colour.
Does it shut off automatically?
Yes. The diffuser powers off automatically when there is no water left in the tank.
How is it powered?
It runs at 10W on a 24V DC or AC supply with a 1.5-meter cord. An adapter is included with US, UK, AU or EU plug types.
How quiet is it, and what is the ultrasonic frequency?
The noise level is below 36dB and the ultrasonic frequency is 2.4MHz.
What is the diffuser made of?
The body is PP+ABS with a diamond cut-out shell finished by water transfer printing.
What is included in the package?
Aroma diffuser x1, adapter x1 (US, UK, AU or EU), remote control x1 and user manual x1. Essential oil is not included.
Can the appearance or function be customized?
Yes. WINPRO offers OEM and ODM service covering structure, materials, functions, logo, sticker and colour box. MOQ applies and is confirmed per project.
